PRODUCT DESCRIPTION

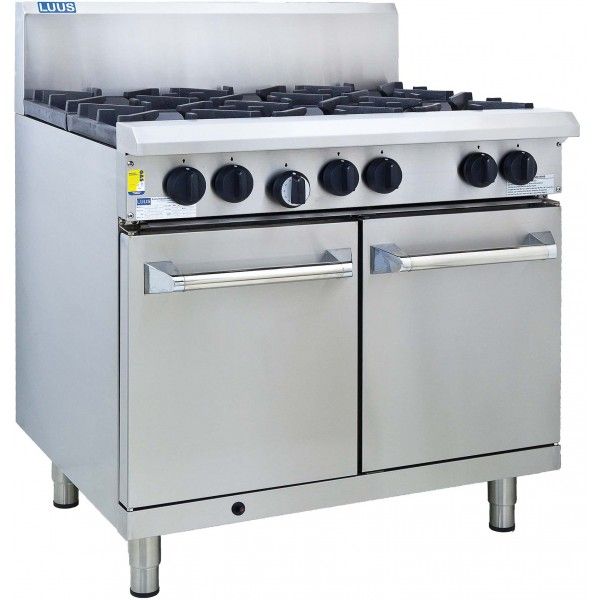

LUUS Professional - 6 Burners & Oven 197mj NAT/197mj LPG
Description
FEATURES
• Nickel plated 28 mj open burners with FFD standard
• 29 mj oven burner & sole plate
• Piezo ignition & FFD included on oven burner
• French (swing) door oven access
• Burner, chargrill & hotplate combinations
• Heavy duty construction
• Easy to clean and service
• Modular Professional series design
• 15 month ‘Platinum Warranty’
Open Burners
• Nickel plated cast iron 28 mj dual-flame ring burners
• Flame failure device standard (pilots optional extra)
• Variable flame control valve with low flame setting
• Heavy duty cast iron trivets
• Pressed 0.7mm 304 stainless steel spillage bowls
Oven
• 29mj oven burner with mild steel sole plate
• Oven flame failure, pilot & piezo ignition as standard
• 100-340° C thermostat control
• Internal cooking space: 740mm x 550mm x 300mm H
• Vitreous enamel 1.5mm internal oven door/wall lining
• Fibertex Rockwool insulation in oven walls & doors
• French (swing) doors for easy oven access
• 304 stainless steel ‘cool touch’ door handles
• Suits 2/1 Gastronorm size trays
• Chrome oven rack supports with 4 positions
• Supplied with 2 oven racks
Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• 16mm thick mild steel griddle plate
• RS-9P plate: 890mm x 540mm; 0.48m2 cooking area
• RS-2B6P plate: 590mm x 540mm; 0.32m2 cooking area
• RS-4B3P plate: 290mm x 540mm; 0.16m2 cooking area
• 2mm 304 stainless steel splash guards
Chargrill/Barbecue
• 33 mj burners with pilot, FFD and piezo ignition
• Cast-iron radiant hood system (ceramic rocks optional)
• RS-4B3C bbq: 280mm x 520mm; 0.15m2 cooking area
Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front, side & door panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel feet with 55mm height adjustment range
• Secondary catchment tray 0.9mm stainless steel
Dimensions
• 900mm x 800mm x 1100mm H
• Working height 900mm
• Weight 179kg
• Packed dimensions 940mm x 860mm x 1260mm H
• Packed weight 204kg
Connections
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 140mm from floor
• Supplied with gas regulator (specify Nat or LP on order)
Cleaning & Servicing
• Removable burner hoods and spillage bowls
• Secondary undertray to catch any additonal waste
• Oven racks, supports and sole plate easy to remove
• Easy access to all parts & components from front
Options/Accessories
• Rear castors
• Plots to open burners
• Ribbed or chrome finish on hotplates
• RH and LH side shields
• Extended warranty
