PRODUCT DESCRIPTION

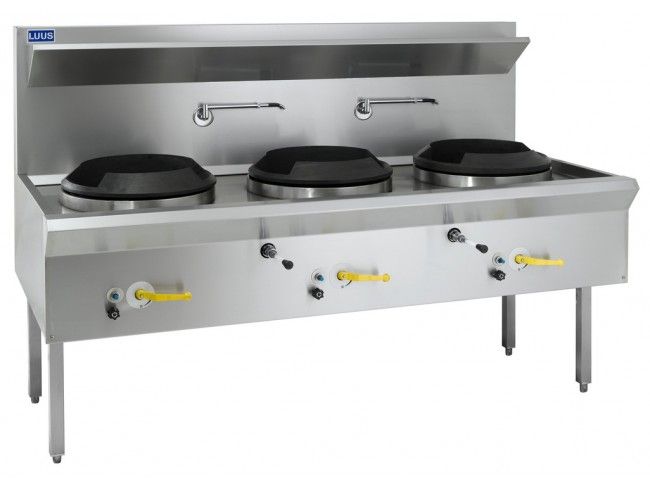

LUUS 3 Chimney Burners Waterless Woks
Description
Features
• Chimney burners ideal for high heat/fast stir frying
• Uses up to 90% less water than Traditional Woks
• Air gap design eliminates need for water cooling
• Laundry arm controlled by quarter turn lever
• Folding laundry arm for flexible usage options
• SS shield ring prevents water from entering air gap
• Modular design to suit multiple WL wok units
• Optional Duckbill burners ideal for medium heat cooking
• Optional Dual Ring burners ideal for low/simmer cooking
• 15 month ‘Platinum Warranty’
• Easy to clean and service
Waterless Wok
• 110/120 mj 24 jet chimney burners with pilot & FFD
• Air gap cooling system with incorporated heat shield
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Front gutter design for easier cleaning
• Internal front heat shield panel
• Supplied with waste strainer and SS air gap shield rings
• Zinc-aluminium Alloy burner handles
Overall Construction
• Welded steel frame construction
• Heavy duty, full skirt, enamelled cast-iron rings
• 1.2mm 304 stainless steel deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback 1.2 mm stainless steel
• Front cover and hob 1.2mm stainless steel
• Side panels & undertrays 0.7mm stainless steel
• 38mm stainless steel tube legs with adjustable feet
Dimensions
• 1800mm x 850mm x 1300mm H
• Working height 815mm
• Weight 259kg
• Packed dimensions 1860mm x 930mm x 1460mm H
• Packed weight 299kg
Connections
• Gas 3/4” BSP male (x3)
• Gas 500/1100/1700mm from right, 50mm from rear,
500mm from floor (regulator connected inside front cover)
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 100mm from right, 50 mm from rear, 400mm floor
• Drain 2” BSP male
• Drain 100mm from right, 130mm from front, 650mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Knee lever timer tap
• Replace Chimney burners with Duckbill or Dual Ring
• 300mm and 600mm wide clip of shelves
• Joining caps & strips
• RH and LH side shields
• Rear castors
• Extended warranty
