PRODUCT DESCRIPTION

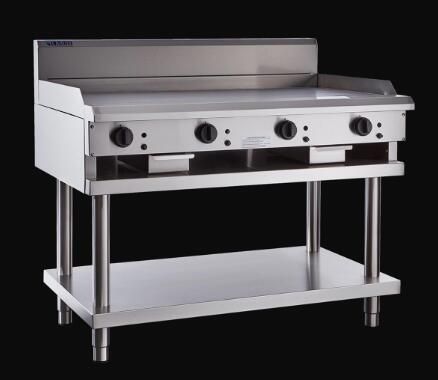

LUUS Professional 1200mm Griddles 72mj NAT/72mj LPG

Reference:
CS-12P
LUMAS Price:
$6,311.80 (inc GST)
Stock Level:
Add to Favourites

Add To Quote

Compare
View Compare List View Enquiry List Go to Checkout
Print
Description

Description

FEATURES

• 16mm thick mild steel griddle plate
• Chrome and ribbed plate finishes optional
• Hotplate and chargrill combinations
• Available freestanding or as a benchtop model
• Modular Professional series design
• 15 month ‘Platinum Warranty’
• Easy to clean and service

Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 16mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-12P plate: 1190mm x 540mm; 0.64m2 cooking area
• CS-9P3C plate: 890mm x 540mm; 0.48m2 cooking area
• CS-6P6C plate: 590mm x 540mm; 0.32m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil bin 1.2mm stainless steel
Chargrill/Barbecue
• 33 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• Two piece burner with cast-iron heat distributing hood
• Optional ceramic rocks for even heat and smokiness
• Optional cast iron ceramic rock tray
• Heavy duty cast iron ‘diamond’ grates 147mm x 540mm
• CS-9P3C bbq: 280mm x 520mm; 0.15m2 cooking area
• CS-6P6C bbq: 580mm x 520mm; 0.30m2 cooking area
• 2mm 304 stainless steel splash guards
• Chargrill undertray 0.9mm stainless steel
Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
Dimensions
• 1200mm x 800mm x 1100mm H
• 1200mm x 800mm x 560mm H (benchtop)
• Working height 900mm
• Weight 146kg
• Packed dimensions 1240mm x 860mm x 1260mm H
• Packed weight 176kg
Connections
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Benchtop model gas connection: 60mm from bottom
• Supplied with gas regulator (specify Nat or LP on order)
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Rear castors
• Joining caps
• Ribbed or chrome finish on hotplates
• RH and LH side shields
• Ceramic rocks (specify when ordering)
• Benchtop mount (specify when ordering)
• Extended warranty
