PRODUCT DESCRIPTION

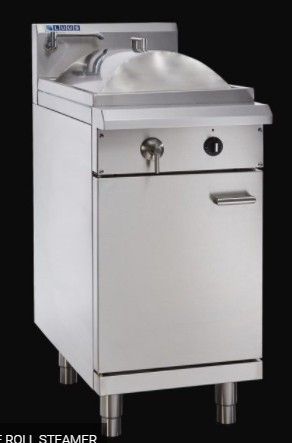

Asian Series Single Tray Rice Roll Steamer with themostat control, drain and overflow system
Description
Features
• Ideal for cooking ‘cheong fun’ & other steaming
• Set thermostat to highest setting for max steam output
• Includes pilot, FFD, piezo and high temp cutout
• Marine grade 316 stainless steel tank
• 35 litre tank capacity
• Water purifying overflow system
• Cabinet design with convenient front panel controls
• Supplied with steam plate and lid
• 15 month ‘Platinum Warranty’
• Easy to clean and service
Rice Roll Steamers
• 63 mj jet burner with pilot, FFD and piezo ignition
• Adjustable thermostat accurately controls water temp
• Water purifying overflow system
• High temperature cut-out safety mechanism
• Marine grade 1.5mm 316 stainless steel tank
• 35 litre tank capacity
• 0.9mm 304 stainless steel lid
• 3mm Aluminium perforated steam plate
• Tank filter insert 0.9mm 304 stainless steel
• Drain back basket stand 1.2mm 304 stainless steel
• Rear laundry arm with controls located on front panel
• Safety release tank drainage valve at bottom of unit
Overall Construction
• Heavy duty construction
• Constructed 0.9mm 304 stainless steel door
• Fiberfrax Durablanket insulation on both sides of tank
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Includes rear castors and stainless steel legs (front)
Dimensions
• 450mm x 800mm x 1100mm H
• Working height 900mm
• Weight 76kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 96kg
Connections
• Gas 3/4” BSP male
• Gas 180mm from right, 70mm from rear, 150mm from floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 60mm from left, 70 mm from rear, 80mm from floor
• Drain 1” BSP male
• Drain 225mm from left, 210mm from front, 220mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
• Removable lid and inserts
Options/Accessories
• RH and LH side shields
• Extended warranty
