PRODUCT DESCRIPTION

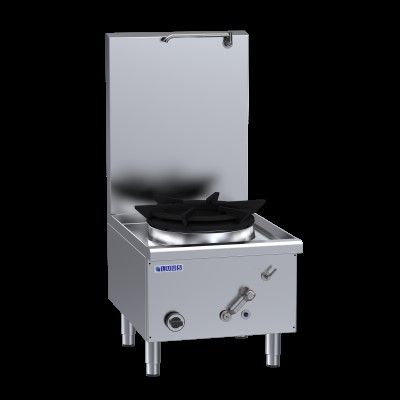

LUUS WZ 600 Duckbill Burner Waterless Stockpot Boiler 333mm
Description
Features
• Space saving 800mm depth
• Suitable for use with Luus 165lt stockpot
• Duckbill burners ideal for high heat/fast stir frying
• Air gap design eliminates need for water cooling
• Cast iron trivet aids airflow and burner combustion
• Machine pressed deck to prevent grime catchment
• Concealed ring lip prevents water from entering air gap
• Folding laundry arm for flexible usage positions
• Optional Chimney Burners no additional cost
• 15 month ‘Platinum Warranty’
• Easy to clean and service
Compact Stockpot
• 90 mj 24 jet duckbill burners with pilot & FFD
• Supplied with heavy duty cast iron trivet
• Air gap cooling system
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Front gutter design for easier cleaning
• Internal front heat shield panel
• Zinc-aluminium Alloy burner handles
Overall Construction
• Heavy duty construction
• Full skirt, enamelled cast-iron rings
• 1.5mm 304 stainless steel one-piece pressed deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback 1.2 mm stainless steel
• Front cover and hob 1.2mm stainless steel
• Side panels 0.9mm stainless steel
• Undertrays 0.7mm stainless steel
• Stainless steel legs with 55mm height adjustment range
Dimensions
• 600mm x 800mm x 1300mm H
• Working height 600mm
• Weight 85kg
• Packed dimensions 650mm x 900mm x 1470mm H
• Packed weight 110kg
Connections
• Gas 3/4” BSP male
• Gas 90mm from left, 85mm from rear, 185m to floor
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 40mm from left, 85mm to rear, 185mm to floor
• Drain 1 /1/4” BSP male
• Drain 80mm from right, 85mm from rear, 185mm to floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Knee lever timer tap
• Replace Duckbill burners with Chimney burners
• 250mm and 500mm wide clip on shelves
• Joining caps & strips
• RH and LH side shields
• Rear castors
